4X GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module White Green LED
Product details
| Management number | 230595836 | Release Date | 2026/06/18 | List Price | $17.92 | Model Number | 230595836 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

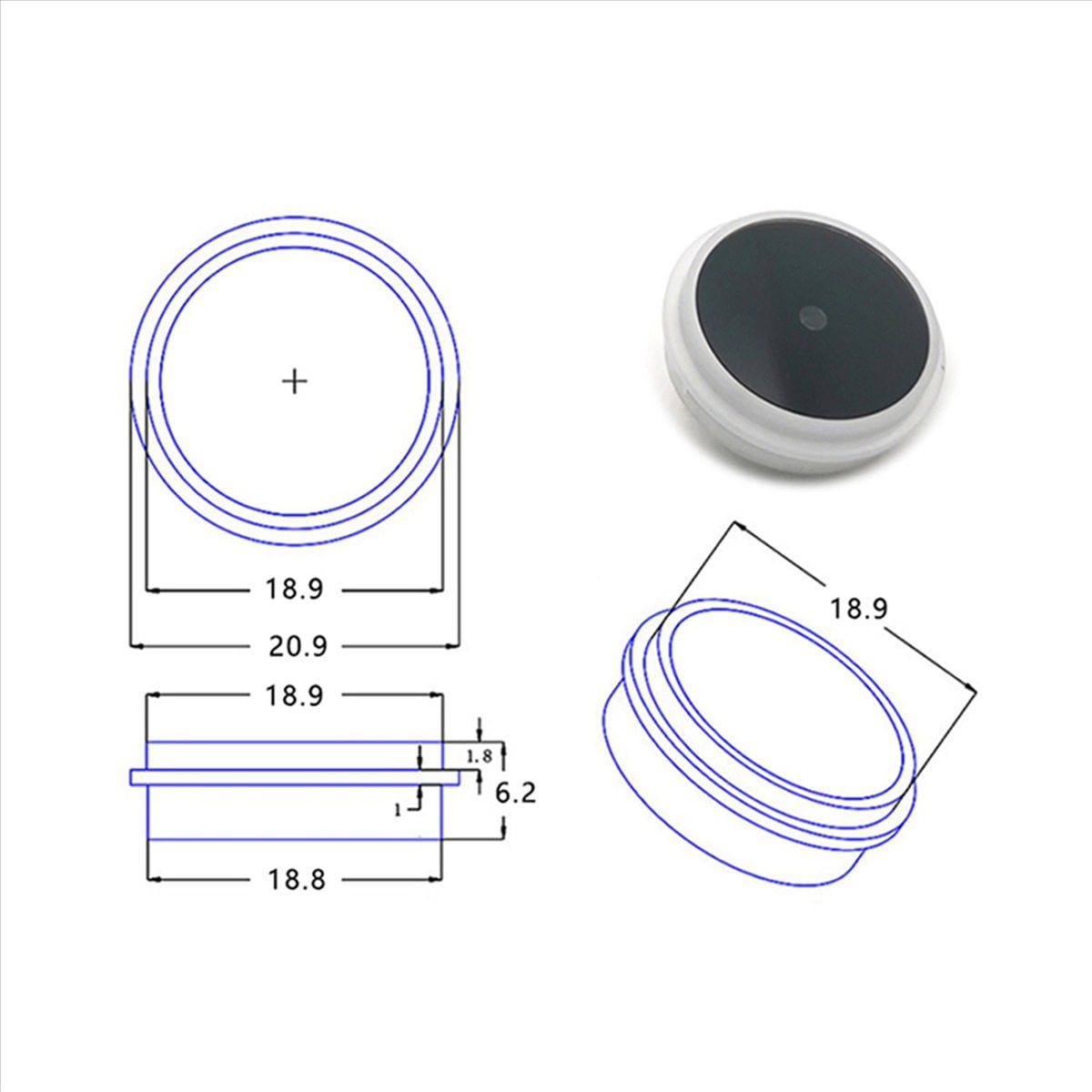

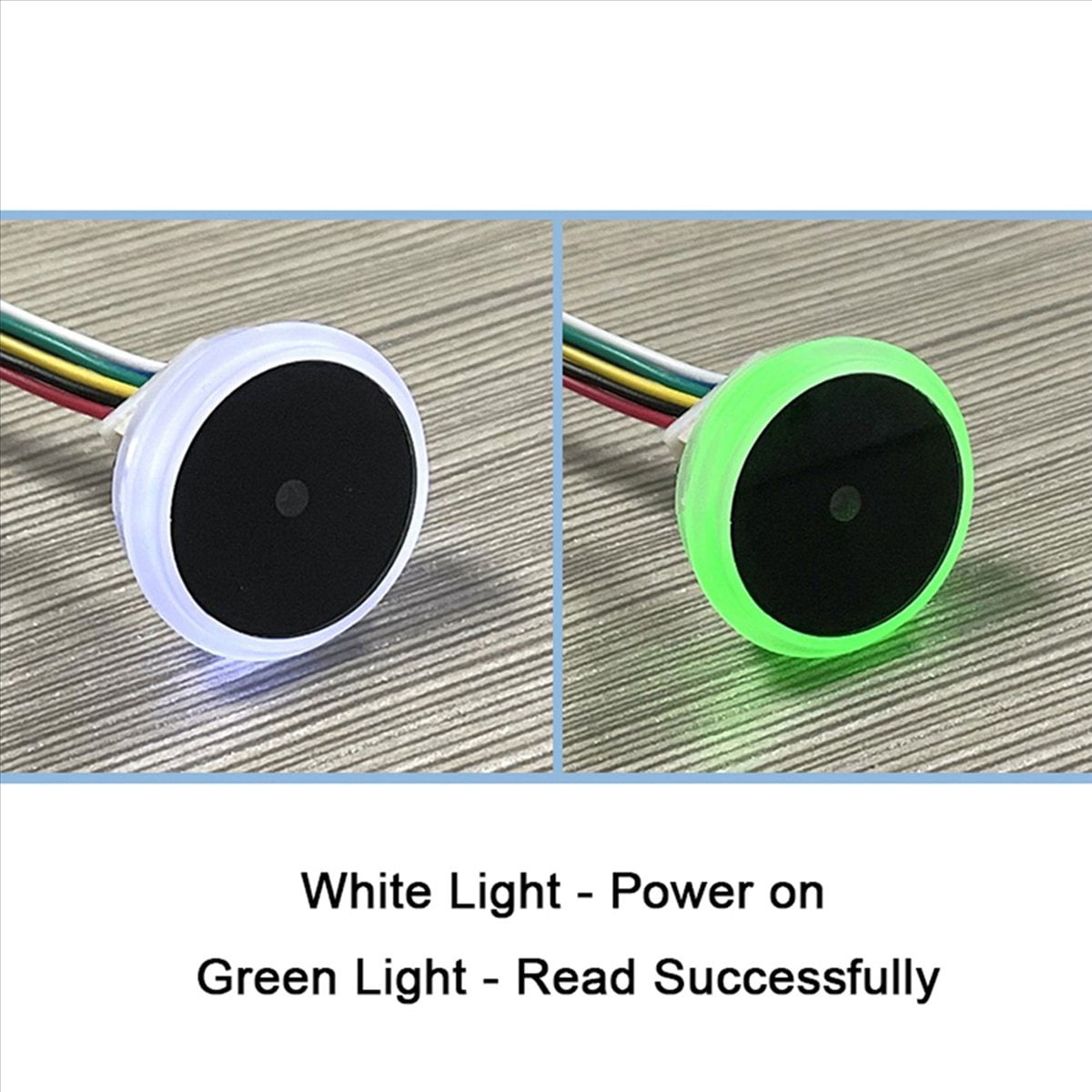

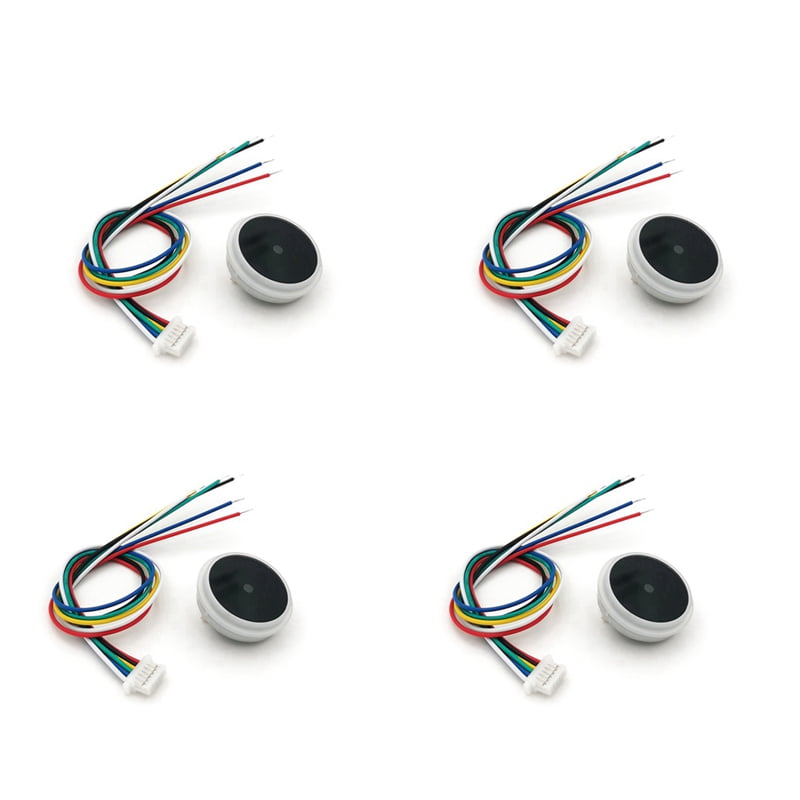

Parameter<br>Performance<br>Sensor<br>CMOS<br>Scan Mode<br>640 x 480<br>Indicator Light<br>Green lightas read successfully<br>Read Code Type<br>1D: -13, -8, -A, -EISSN, , CodaBar,Code 128,<br>Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,<br>Matrix2of5, Code 39,Code11, -Plessey,<br>GS1 Composite,GS1-Databar (RSS)<br>2D: QRCode, DataMatrix, PDF417<br>Accuracy of reading x: ≥10mil<br>Mechanical/electrical Parameters: <br>Parameter: Performance<br>Interface: TTL-232/USB<br>Size(mm): Diameter 20.9mm Height 6.2mm<br>Weight: 2g/pcs<br>Prompting mode: LED Indicator<br>OperatingVoltage: 3.3V<br>Operation Current: 70mA(Max)<br>Standby Current: ≤6mA(Typical)<br>Startup time: ≤250mS (Typical)<br>material: metal<br>Color as shown<br><br>Package Contents: <br>4 x Scan code module<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Viewing Angle:67°(Horizontal)53°(Vertical)
- Reading Distance:5-30cm
- Contrast x : 25%
- GM861S
- Scan Angle x x :Roll:360°Pitch:65°Yaw:65°
| Scanner technology | 1D, 2D |
|---|---|
| Brand | Unbranded |
| Accessories | Scan code module |
| Has written warranty | No |
| Color | White |
